Coolants & Brake Fluids

Champion maintenance fluids for cooling and braking systems.

Champion Brake Fluid DOT 4 LV Champion Brake Fluid DOT 5.1 Champion Coolant Asian LL -36C
4 products
4 products
Brake fluid

Champion Brake Fluid DOT 4 LV

Champion Brake Fluid DOT 4 LV

Product details at a glance

Product category
Brake fluid
Base type
Synthetic
Application segment
Agriculture, Car
Pack size
250ML

Applications

Its high wet boiling point of 172°C is superior to conventional DOT 3 and DOT 4 fluids, enabling a longer product life. At -40°C, its viscosity is lower than conventional brake fluids, allowing easier circulation in the micro-valves of anti-locking systems for better ESP, ABS and ASR response.

Performance features

  • Boiling point: very high boiling point for safe braking
  • Anti-corrosion properties: complete brake-system protection

Standards and approvals

OEM approvals and references Ford WSS-M6C65-A2; GM GMW 3356; MB 331.0; VW 501 14; PSA S71 2114; BMW QV 34 001

Typical characteristics

Test Method Unit Average result
Kinematic viscosity at 100°C ASTM D445 mm²/s 2.10
pH ASTM D1287 - 8.53
Equilibrium Reflux Boiling Point (ERBP) ASTM D1120 °C 267
Wet Equilibrium Reflux Boiling Point (WERBP) ASTM D1120 °C 172
Density at 20°C ASTM D4052 g/ml 1.049
Kinematic viscosity at -40°C ASTM D445 mm²/s 675

Typical values from the official Technical Data Sheet. Characteristics may change as formulations evolve.
Brake fluid

Champion Brake Fluid DOT 5.1

Champion Brake Fluid DOT 5.1

Product details at a glance

Product category
Brake fluid
Base type
Synthetic
Application segment
Car
Pack size
500ML

Applications

For all hydraulic brake systems, including ABS, where manufacturers require a fluid meeting the listed specifications. It is also suited for use as a power-steering and torque-convertor fluid. Application range: -40°C to 270°C.

Performance features

  • Boiling point: very high boiling point for safe braking
  • Anti-corrosion properties: complete brake-system protection
  • Elastomer compatibility: no leakage or fluid loss

Standards and approvals

OEM approvals and references FMVSS 116 DOT 5.1; ISO 4925 Class 5.1; SAE J1703/J1704

Typical characteristics

Test Method Unit Average result
Kinematic viscosity at 100°C ASTM D445 mm²/s 2.16
pH ASTM D1287 - 7.49
Equilibrium Reflux Boiling Point (ERBP) ASTM D1120 °C 275
Wet Equilibrium Reflux Boiling Point (WERBP) ASTM D1120 °C 187
Density at 20°C ASTM D4052 g/ml 1.069
Kinematic viscosity at -40°C ASTM D445 mm²/s 810

Typical values from the official Technical Data Sheet. Characteristics may change as formulations evolve.
Coolant

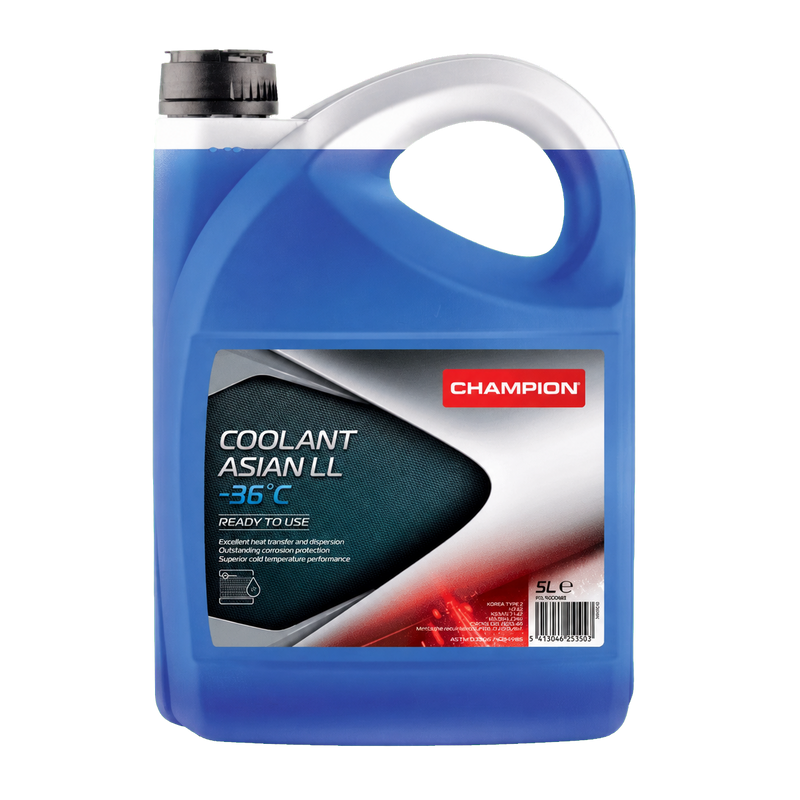

Champion Coolant Asian LL -36C

Champion Coolant Asian LL -36C

Product details at a glance

Product category
Coolant
Base type
Ethylene glycol P-OAT
Application segment
Car
Pack size
5L

Applications

This P-OAT coolant is specially developed to protect modern combustion-engine cooling systems used by Asian OEMs. It is miscible with most OAT MEG-based coolants, but for the best corrosion protection only this P-OAT coolant is recommended for long-term use.

Performance features

  • Total system protection: excellent heat transfer and dispersion
  • Anti-corrosion properties: outstanding corrosion protection
  • Antifreeze properties: superior cold-temperature performance

Standards and approvals

OEM approvals and references ASTM D3306/D6210; JIS K2234:2018; Toyota; Honda; Nissan; Hyundai; Mazda; Mitsubishi; Subaru; Suzuki

Typical characteristics

Test Method Unit Average result
pH ASTM D1287 - 8.3
Density at 20°C ASTM D4052 g/ml 1.064
Colour VISUAL - DARK BLUE
Freezing point (refracto) ASTM D3321 °C -36
Water content ASTM D1123 % wt/wt 50

Typical values from the official Technical Data Sheet. Characteristics may change as formulations evolve.
Coolant

Champion Coolant Evo LL -36C

Champion Coolant Evo LL -36C

Product details at a glance

Product category
Coolant
Base type
Ethylene glycol PSi-OAT
Application segment
Agriculture, Car
Pack size
5L

Applications

This PSi-OAT coolant is specially developed to protect modern combustion-engine cooling systems made from aluminium and aluminium alloys. It is miscible with most OAT MEG-based coolants, but for the best corrosion protection only this PSi-OAT coolant is recommended. It offers long-term protection in VW TL 774-L (G12 evo) and many other OEM applications.

Performance features

  • Total system protection: excellent heat transfer and dispersion
  • Anti-corrosion properties: outstanding corrosion protection
  • Antifreeze properties: superior cold-temperature performance

Standards and approvals

OEM approvals and references VW TL 774-L; MB 325.5/326.x; MAN 324 Si-OAT; ASTM D3306/D6210/D4340

Typical characteristics

Test Method Unit Average result
pH ASTM D1287 - 8.10
Density at 20°C ASTM D4052 g/ml 1.062
Colour VISUAL - PINK
Freezing point (refracto) ASTM D3321 °C -36
Water content ASTM D1123 % wt/wt 50
Boiling point ASTM D1120 °C 112

Typical values from the official Technical Data Sheet. Characteristics may change as formulations evolve.
